34' Norman Cross Trimaran

From the drafting table of Norm Cross (renowned for both power and sail trimarans and catamarans in the 60s, 70s and 80s) came one of his favorite designs, the 34' trimaran. This professional built example has been well maintained and cared for. She will be a delight for her next owner.

$36,000

  • Make or Manufacturer

    Custom

  • Condition

    Used

  • Year

    1974

  • Name

    Long Gone

  • Category

    Sailboat

  • Class

    Multihull

  • Designer

    Norman Cross

  • builder

    Jatterson and Sons

  • Length Overall

    10m / 34ft

  • Beam

    6.2m / 20ft

Engine Yanmar 2GM20F; European built; Approx 500 hours (The Yanmar was installed new in about 2002 including the transmission, shaft and so on. All of this was before my purchasing the boat.) 3 blade 13x14 bronze propeller Racor fuel filter Motors at 6.5kts in flat water

Two fuel tanks located below the cabin sole, approx. 30 to 35 gallons each. Burning 0.6 gph at full throttle.

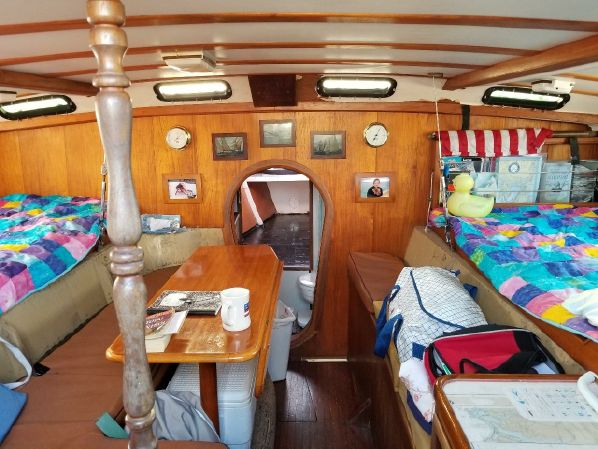

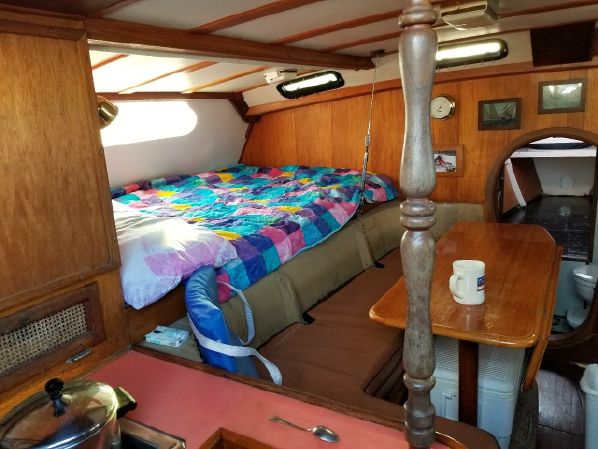

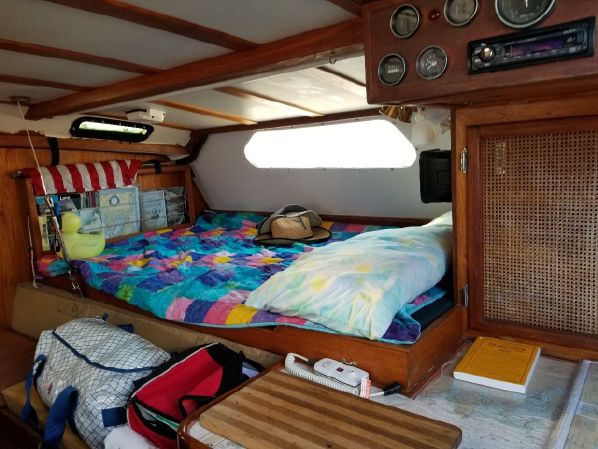

Accommodations Sleeps 6 There are two doubles in the main salon (outboard port and starboard) Generous double in the V-berth forward Lewmar 24" hatch above the V-berth

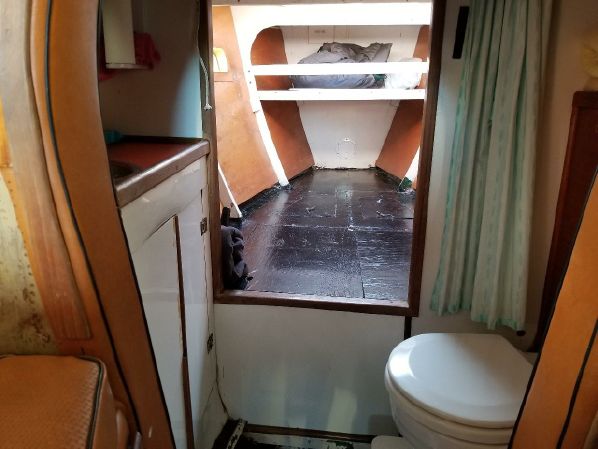

The head is located forward between the main salon and the V-berth Jabsco toilet (new in 2015) 18 gallon holding tank with the ability to pump overboard, pump holding tank out manually or to have the holding tank pumped out by pump out boat

Approx 30 to 34 gallons fresh water in two tanks Pressure cold water with spare pump

Galley The galley is located to port as you enter the salon.

Kenyon two burner alcohol stove Double stainless steel sink Custom dinnette table Folding cockpit table

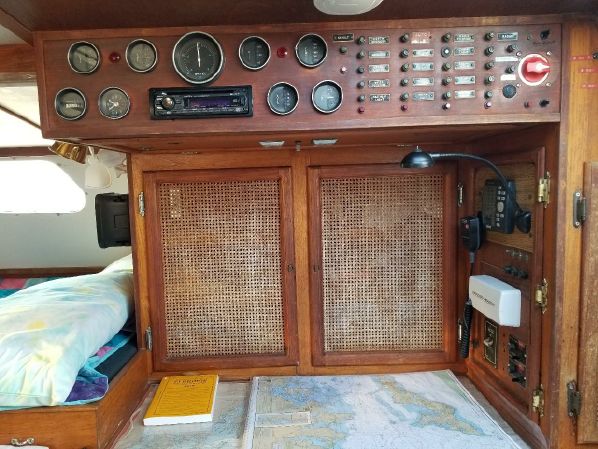

Electronics / Electical Autohelm ST4000 wheel autopilot Furuno 1621 Radar Garmin Echo Map 50s chart plotter/GPS/sonar (located at the helm) Garmin GPS map 128 (located at the Nav station) Horizon GX2150 VHF with AIS receiver RAM mike at helm Data Marine Speed / Depth Horizon Wind speed and direction Sony stereo

Two Rolls AGM house batteries (2016) One Rolls AGM engine start battery (2016) Blue Sea battery isolator system

Masthead tricolor and anchor light, both LED Deck running lights Combination mast mounted steaming light and foredeck light

Sails Dacron mainsail with two reef points (was new for 2016) Kevlar Genoa approx 150%

Sails are by Fries Sail Design in Mystic. John Fries designed them and they were built offshore, in South Africa I believe. The main, like the Jib was new in late summer 2016. They are a really nice set. There is also a sunbrella custom mainsail cover new in 2017.

Harken roller furling for genoa

Deck 38" deck stepped aluminum non-rotating mast Harken roller furling unit for the jib 2 Upper stays (capshrouds) to outer hulls 2 Lower and 2 Intermediate stays inboard on main hull Twin back stays

2 Barient 22 winches for genoa on cockpit coaming 4 Barient 21 winches on cabin top Deck organizer to lead halyards back to cockpit Spinlock line clutches

Additional Information 35lb CQR anchor with 15' chain and 200' 5/8" braided rode Fenders Dock lines Usual spares, tools, and life preservers
