The IMX-40 is a true racer/cruiser with the pedigree and outstanding reputation of her Finnish X-Yachts builder. She is an extremely competitive yacht yet offers excellent accommodations for the yacht club cruise with abundant amenities, and is great for a large family with three private cabins. Due to her superb construction, speed, and easy sail plan she excels in offshore racing. Resolute is currently set up for racing, but can be easily converted back to cruise mode. The present owner purchased the IMX-40 in 2018 in preparation for the Newport-Bermuda Race 2022, and has done numerous upgrades including a complete new sail inventory and a new custom carbon rudder in addition to the previous owners total refit.
X-Yachts IMX-40

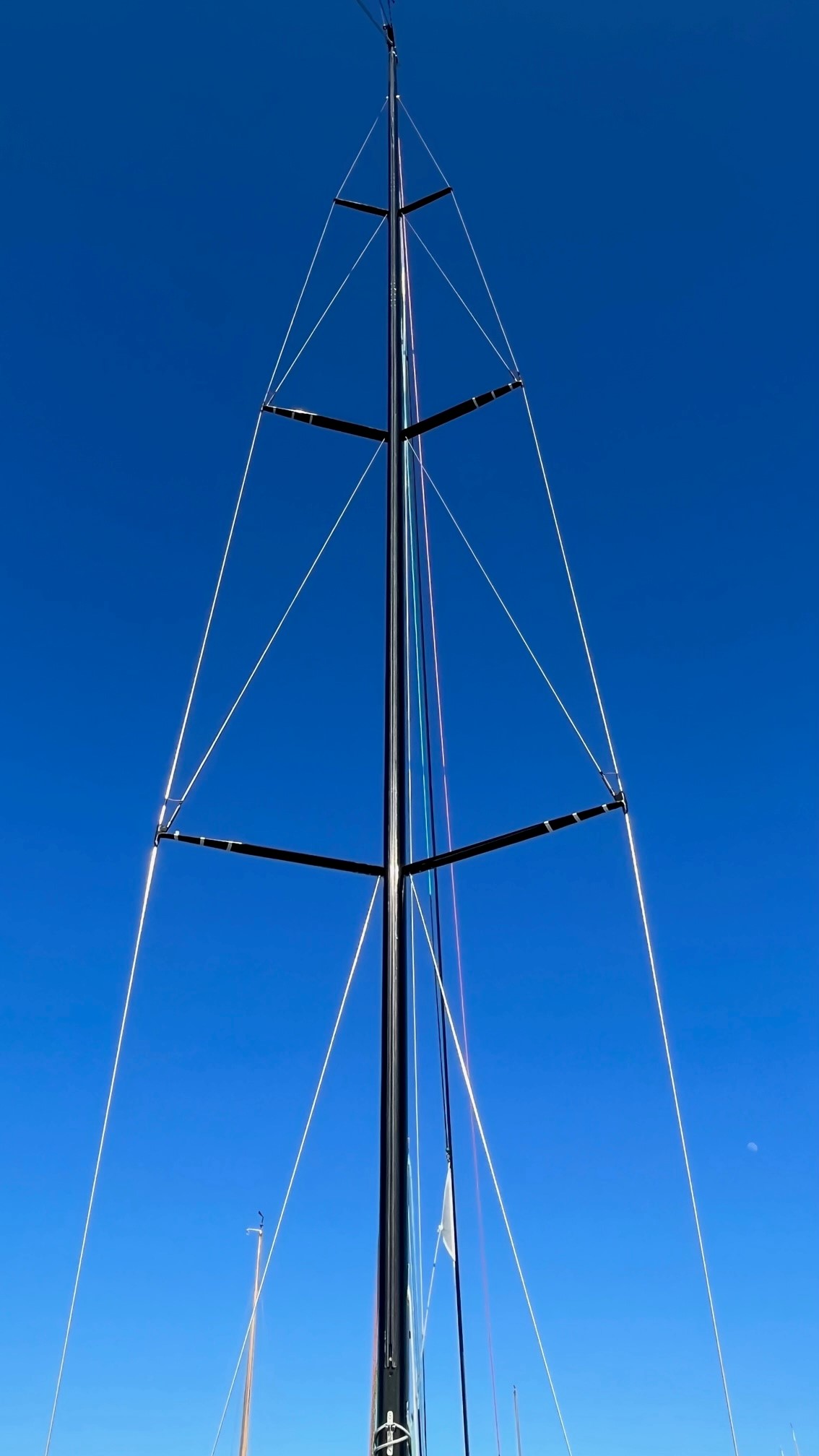

Dimensions LOA: 39'8" LWL: 34'7" Beam: 12'5" Draft: 8' Displacement: 14,275 I: 52'7" J: 14'9" P: 49'10" E:18' Carbon Rig with 3 spreaders Rod rigging
Accommodations Vee berth forward sleeps 2. 2 Aft Cabins with optional pipe berths overhead DC refrigeration White/Red LED lighting Hot & cold pressure water Interior recent re-varnish
Sail Inventory UK Mainsail - X-Drive Carbon - 2023 Doyle Mainsail - ICE Carbon Load w/ Technora - 2016 J1 - North Genoa - 3DL RAW 870 Carbon - 2018 J2 - UK Genoa - X-Drive Carbon Load - 2022 J3 - UK Jib - X-Drive Carbon Load - 2022 J4 - UK Jib- X-Drive Carbon Load - 2022 A-2 Spinnaker - UK - 2022 A-2.5 Spinnaker - North - 2020 A-2 Spinnaker - (runner) - Doyle - 2018 A-3 Spinnaker - (fractional) - Doyle - 2018 Code Zero - UK - 2022 Jib Top - Doyle - Kevlar Laminate - 2016 Staysail - UK - 2022 UK Storm Trysail and Jib - 2022
Hull Awlgrip: Red Bottom: faired VC Offshore Keel: Faired Mast, Boom, Instrument bracket & wheel faired and repainted jet black-2018

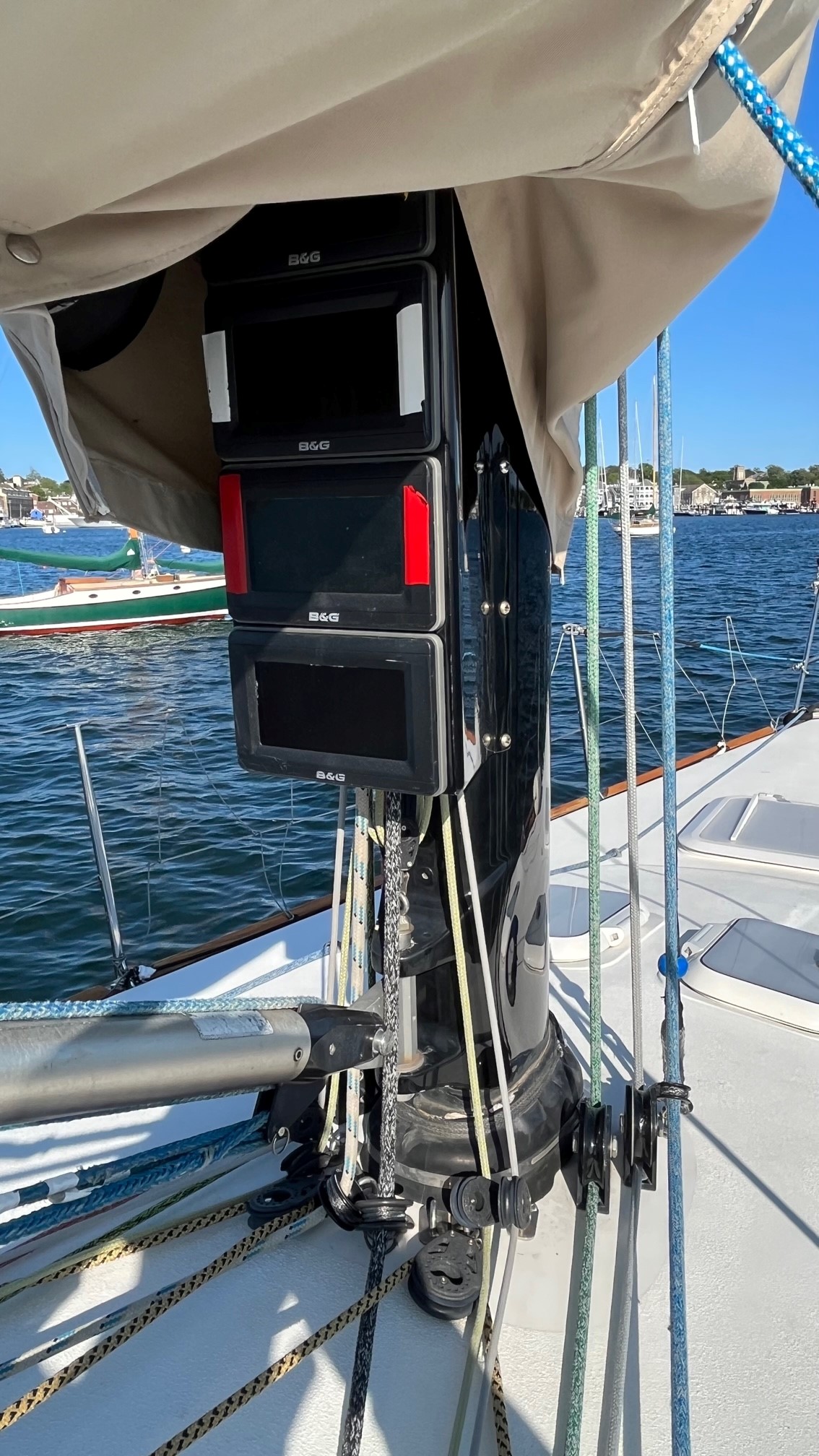

Electronics 2018 H5000 B&G Hercules performance electronics H5000 CPU Hercules w/Polar Tables for performance target & 3D motion correction 4 Mast 20/20 displays 2 Vulcan 7 H5000 display Triton Mast display Zeus touch 12" plotter B&G auto pilot computer, interfaced HD Raymarine linear gear drive autopilot Simrad helm auto pilot controller w/rotary knob Precision-9 Compass Carbon masthead wind nine axes sensor w/pitch and roll data Speed, temp, depth transducers NEMA 2000 full integrated system added, Auto,Audio, AIS, H5,VHF,GPS,WiFi,Bluetooth B&G AIS B-MMSI MOB helm button XM sat radio, with B&G weather JL 2 Zone audio w/amp with B&G integration, DVD, VHF, XM, Bluetooth, USB, Iphone B&G Go Free WiFi B&G Sonic Hub Raymarine Radar on carbon pole detachable
Electrical Batteries 4D & Group 24 AGM Lifeline New Balmar alternator and smart controller Battery auto charge combiner Inverter/battery charger ALL-2016 Set up to run 110 with Honda 200 whisper
Upgrades
2019 - 2022
Complete new sail inventory - (see sail inventory)
New custom carbon rudder by Van Gorkom Yacht Design
New house batteries - two 4-D
New Saildrive bellows (gaskets)
New steering cables
New raw water and manual bilge pumps
New masthead lighted windex and LED Tri-color light
2018
Mast,boom,wheel & instrument pod faired and painted at Hinkley 4 coats black awlgrip New HS000 B&G Hercules performance electronics installed
-HS000 CPU Hercules w/Polar Tables for performance target & 3D motion correction
-4 mast 20/20
-2 Vulcan 7
-HS000 Race display
-Triton mast display
-Zeus touch12"plotter
-B&G autopilot computer, ,controllable at any of 4 station
-Simrad helm autopilot controller w/ rotary knob
-Precision-9 Compass
-nine axes sensor w/ pitch and roll data
-speed, temp & depth transducers
-NEMA 2000 full integrated system added ,Auto, Audio, AIS, HS, VHF, GPS, WiFi, Bluetooth.
-MOB helm button added
All floorboards rebeded with SS threaded inserts Toe rails striped and varnished, 7 coats
Lazaret LED lighting added
Mast rewired,hi-gain RG58 marineVHFcable, Deutch quick connectors at mast base Mast butt sand blasted and epoxy coated
New high gain VHF antenna installed w/windex
New LED nav lights installed
Winches serviced
New volvo gear reduction hi-efficiency starter installed
Bulb & keel refaired
New Carbo headstay foil
New spin halyard
New car leadl ines P&S, New traveler line
New bob stay
Vang and gooseneck tangs rebush to new tolerance
Boom and mast red accent LED lights added
New shive box added for foil riding sail
New PBO backstay and spectra strap on boom
All interior spaces removed and deep cleaned
Interior touch up varnish with one coat
Engine room cleaned and touch up painting completed
Wet sand bottom to 600
Apply protective coating to hull algrip
2017
New seals in sail drive, horizontal shaft replaced
New ceramic XL spinlock rope clutches on stbd side
Engine room sound down replace with high end composite material
New jib sheets
New main halyard carbon block 2:1 added
JL 2 zone audio system installed speakers on deck fitted with courtesy lighting interfaced to B&G system controllable at any of 3 stations
DVD player added B&G WiFi added
New traveler return blocks added
B&G VHF V90 added with wireless second hand set
Auto Bilge system with wireless pneumatic hi level alarm and counter added
Autopilot drive rebuilt with HD part
½ interior lighting upgraded to LED Head rebuilt
Vang / outhaul system replaced with cascade system
Removable life lines at transum added
Interior extensive revarnish completed
All interior spaces removed and deep cleaned
Engine room cleaned and touch up painting completed
Wet sand bottom to 600
Apply protective coating to hull algrip
Through hull fitting removed and serviced
2016-2015 November
Batteries replaced 40 & Group 24 with AGM lifeline
Battery switches replaced
New Balmar alternator and smart controller
Battery auto charge combiner added
A/C & heat added with touch screen display and soft starter for use with a Honda 2000 genset, upgraded quiet insulation, upgraded liquid cooled mag drive condenser pump with back flush. XM satellite radio with Weather
AIS B in/out added
B&G plotter added at nav station
New Flex-a-fold propeller added
New bob stay
All new running rigging
Engine cooler removed and cleaned to like new condition
New volvo lift pump
New volvo raw water pump
New volvo exhaust elbow
Engine saildrive mounts painted
Forward birth made removable
Black water tank and sanitation hoses replaced
New inverter/battery charger added
New racor fuel filter with priming pump added
Bottom refaired wet sand to 600
Manufacturer Provided Description:
The IMX-40 is X-Yachts' outright sportive racer / cruiser with top-level racing having absolutely first priority. The hull and deck are vacuum-bagged, rudder and rudderstock are carbon, and the spars are carbon. The IMX-40 will be the first European-built offshore 40-footer made to state-of-the-art specification.
